LED Full Color Controller RJ-FSD-1000D

• First, Overview：

• Inside the pattern 102，then control can be equipped with SD (<4G).
• Call internal pattern afterthe boot without SD ,calling SD of  animation effect after the boot with SD。RJ-FSD-1000D can send  DMX512 & TTL signal。
• using standard DMX512 choose built-in patterns  speed and R G B/RGBW。
• Can be more than one, the synchronization signal recommend no more than 50 meters, measured 100 meter.
• The maximum drive 2048 pixels. The maximum refresh rate of 30 frame rate(<512 pixels)。
• The maximum distance between the controller and lighting TTL is <15m;485 signal <30 meters  TTL simultaneously and then 10 or so pieces。



[table id=1 /]

Second, support IC：

[table id=2 /]

Three, automatic discriminant SD card or internal pattern

   Boot automatically when judging whether a card, a card call SD pattern, no card automatically calls the internal pattern.

---

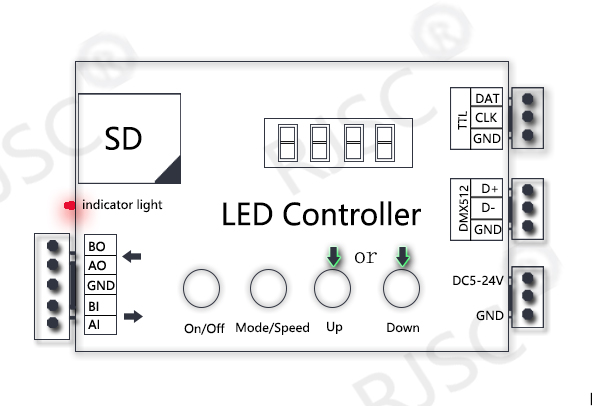

• pattern & speed.

        12

• under the SD card status ,you can select the pattern and speed through the key, where [on/off]key is invalid. No card and other operations ,as detailed below.

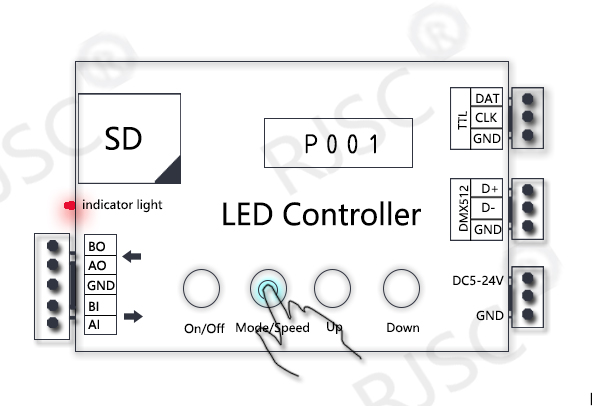

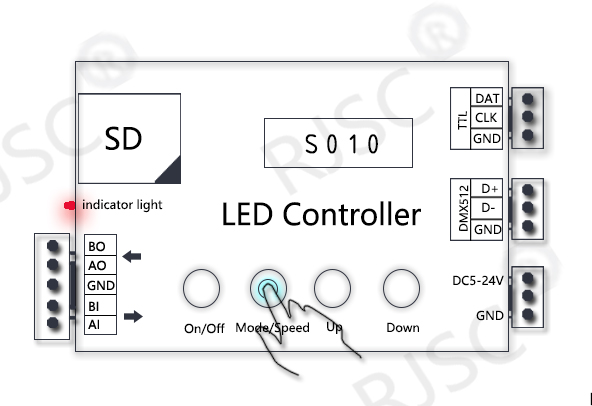

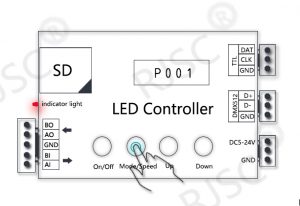

• Press[mode/speed]Th second key to cycle through S001 and P001,S beginning representative rate, P beginning representative pattern (Figure 1),

this time through the [UP] and [DOWN] to increase or decrease.

• Press the second button [MODE/SPEED} to display A000,A representative DMX512 address, attention DMX address decode and use only standard DMX512 console

control only useful built-in patterns. Increases and decreases with the UP and DOWN keys.

---

• Wiring

1. WS2811/2812  UCS1903/2903 SM16703 TM1803/1804/1812 etc. (TTL single wire  lamp)

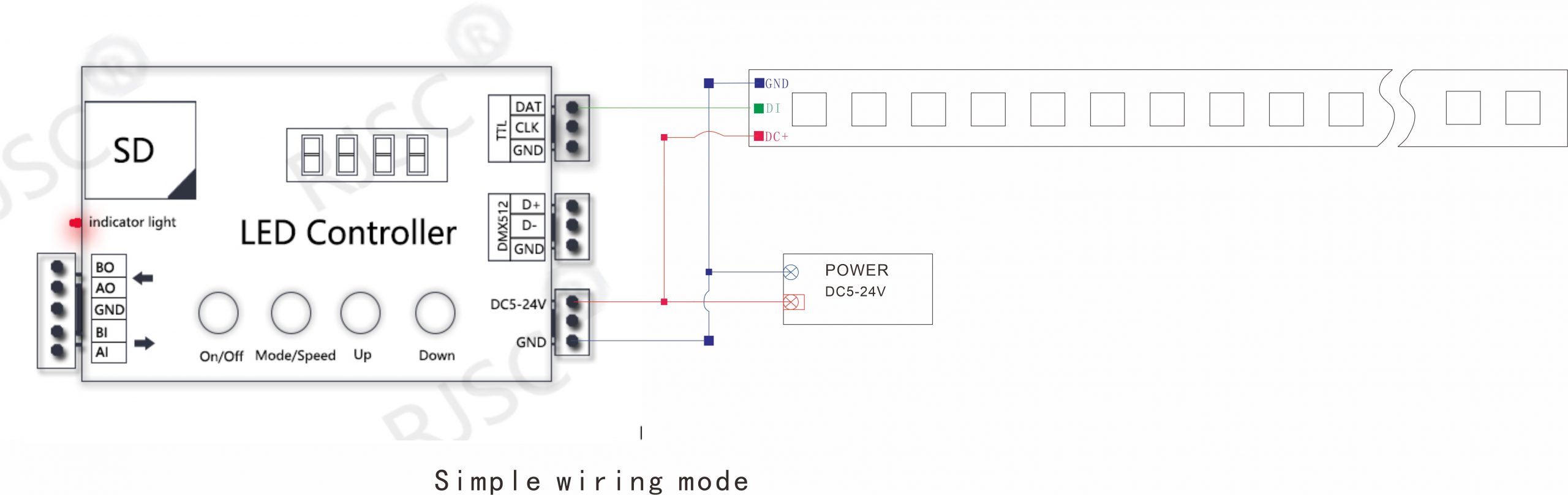

Simple wiring mode

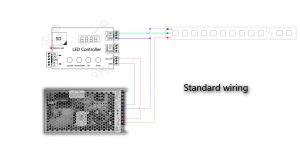

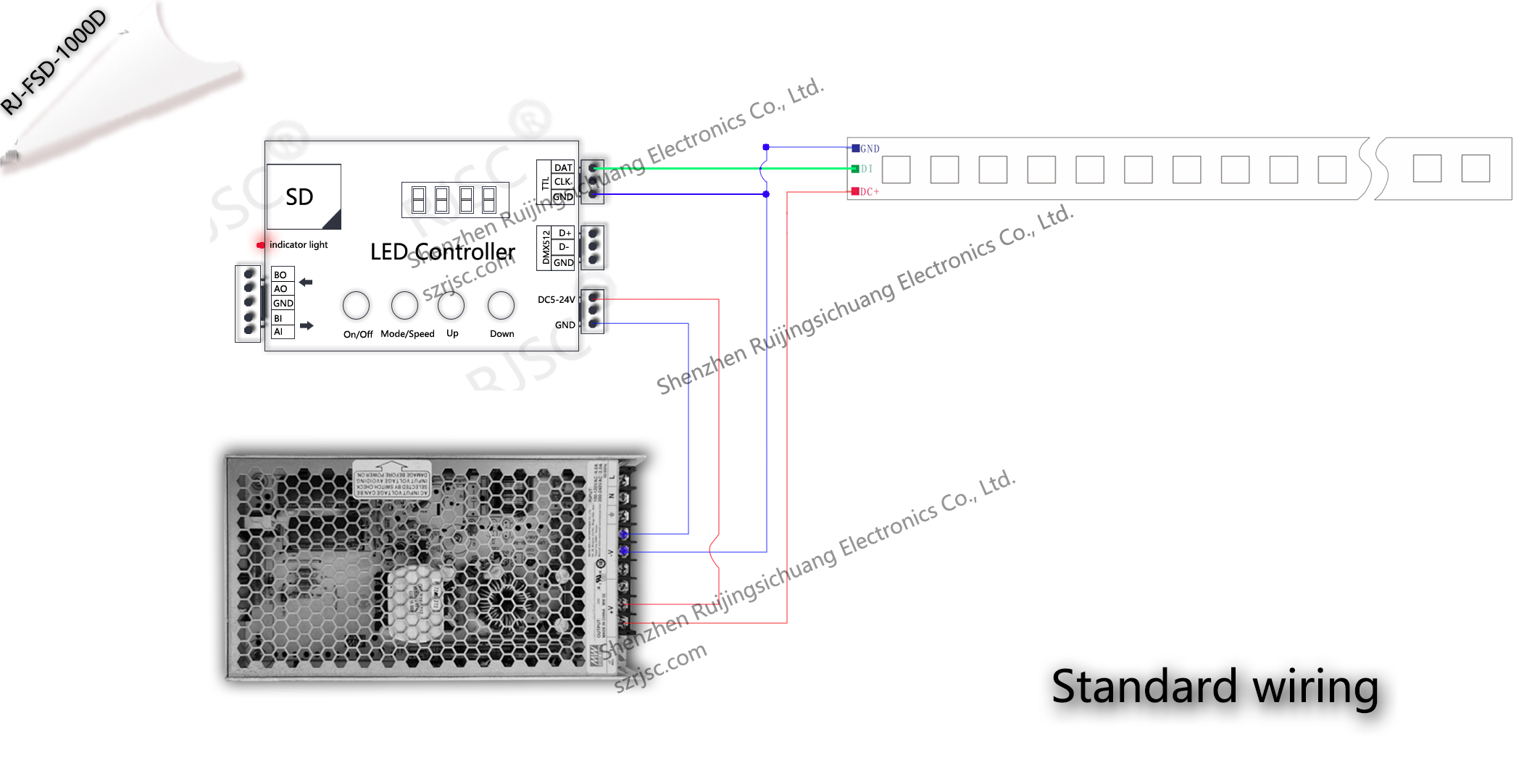

Standard wiring

  [error]

---

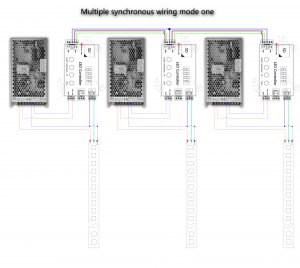

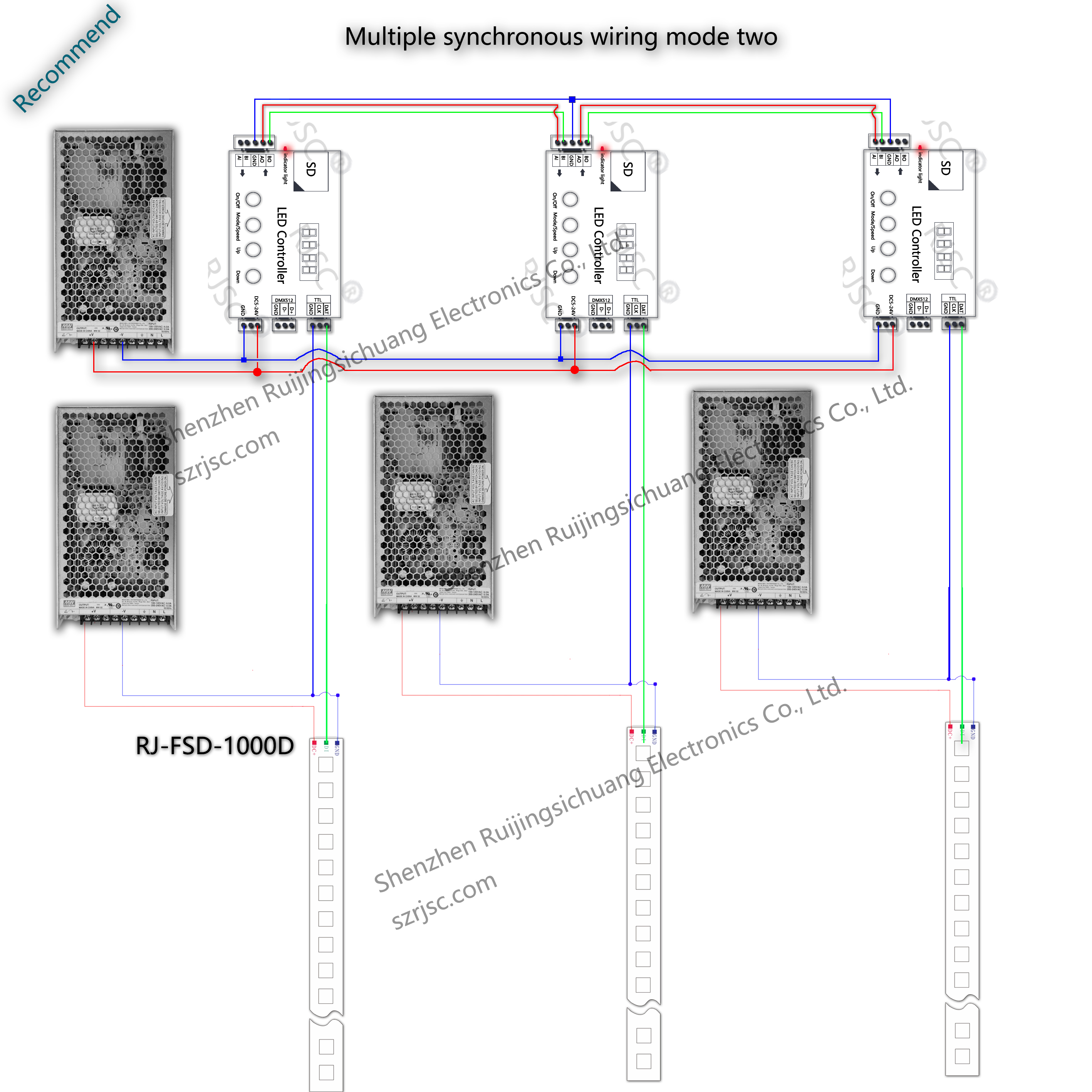

• Multiple controller for synchronous operation

1             2

TTL: single-and two-wire signal interface.

DAT: Data

CLK: Clock

GND: Signal ground

DMX512: selected models DMX512  DMX 512  signal is sent, the differential signal is sent when the other models;  board with 485 receiving the signal transmitted farther.

D+: DMX512 signal A

D-: DMX512 signal B,

GND: normal circumstances without wiring.

• Internal pattern instructions

---

• Election IC Type(Built-in mode only):

1 2

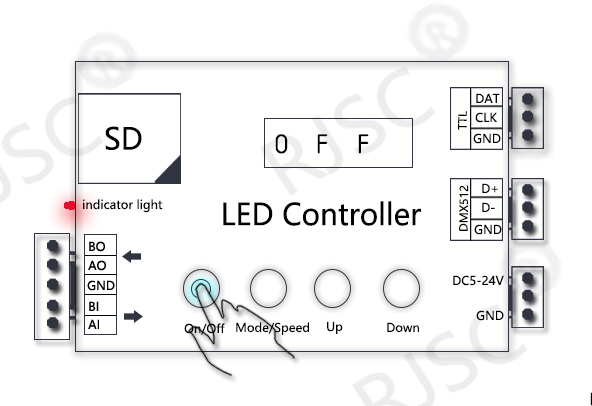

• First press the [ON/Off] key to display OFF enter programming mode(Figure 1)

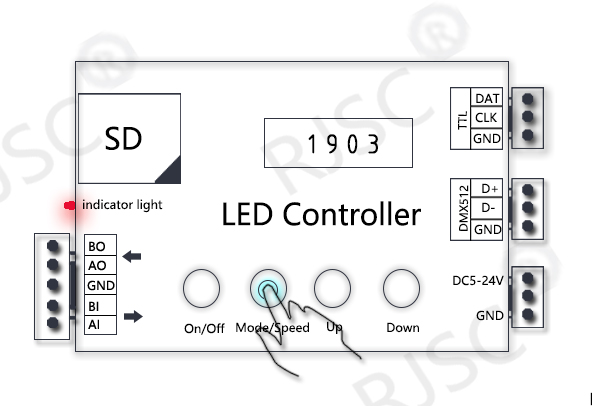

• Then press the[Mode/Speed] Select (Figure 2),

choose the right model and then take [On/Off] key to exit.

---

• Control points set(Built-in mode only)

1 2

First press the [ON/OFF] key to enter the programming screen display  OFF state.

[UP]and[DOWN] set points.

Then[On/Off] key to exit.

---

• DMX512



1、using standard DMX512 choose built-in patterns  speed and R G B/RGBW。

Attention：

• Please pay attention to rain when installing
